ASTRA LAUNCH SERVICES

Dedicated, low-cost orbital launch services for small satellites

LAUNCH SYSTEM 2 UPDATE

LAUNCH SYSTEM 2

Optimized for reliability and launch frequency while delivering best-in-class launch economics

600 KG
Target Payload Capacity*

WEEKLY
Target Launch Cadence**

29°-110°
Orbital Inclinations Served

*TARGET PAYLOAD CAPACITY TO MID–INCLINATION LOW EARTH ORBIT OVER THE COURSE OF THE PRODUCT LIFECYCLE

**TARGET LAUNCH CADENCE IS SUBJECT TO SPACEPORT AVAILABILITY & PRODUCTION CAPACITY

THE ASTRA ADVANTAGE

Icon Calendar

YOUR
SCHEDULE

We designed Launch System 2 specifically to support an increased launch cadence and increase Astra’s annual launch availability – up to one per week.

More frequent launches allow you to deploy and maintain your constellation on your schedule – with a partner as dynamic as your business.

Icon Globe

YOUR
ORBITS

We understand the importance of getting right where you want to be in space – without waiting on rideshares and orbital transfer maneuvers.

Dedicated launches accelerate your path to the specific orbit your mission requires and allow you to start providing services sooner.

Economic

BEST-IN-CLASS
ECONOMICS

Astra is focused on providing the lowest possible price-per-dedicated launch and providing the most affordable path to custom orbits.

Take advantage of best-in-class launch economics and spend more capital building spacecraft and developing products.

ROCKET 4 OVERVIEW

ROCKET 4 OVERVIEW

HEIGHT
62 ft / 18.9 m

DIAMETER
72 in / 1.8 m

STAGES
Two

LIFTOFF MASS
~66,000 lb

UPPER STAGE THRUST
~6,500 lbf

FIRST STAGE THRUST
~80,000 lbf

PROPELLANTS
LOX + RP-1

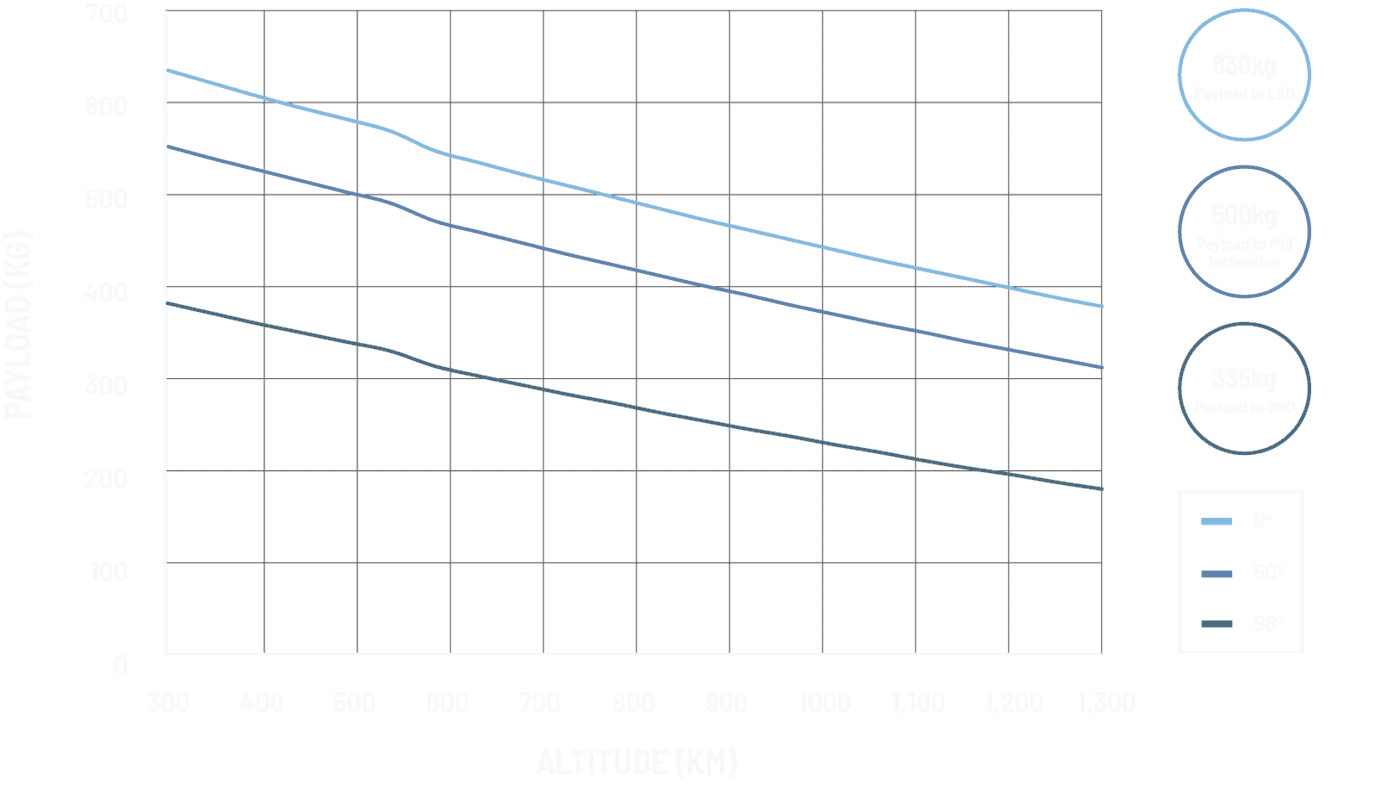

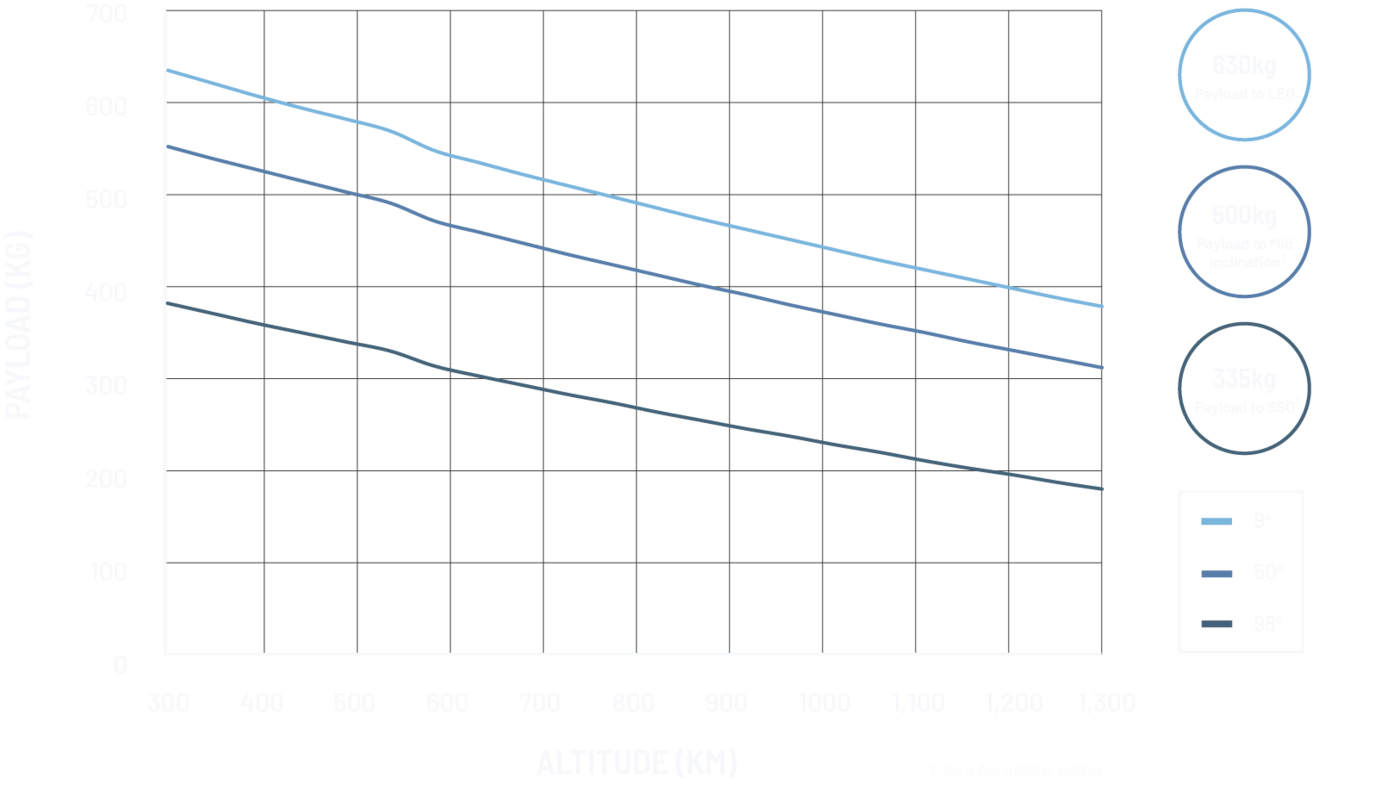

PAYLOAD CAPACITY
600 kg – 50° – 500 km

TARGET PAYLOAD CAPACITY OVER THE COURSE OF THE PRODUCT LIFECYCLE

PAYLOAD CAPACITY

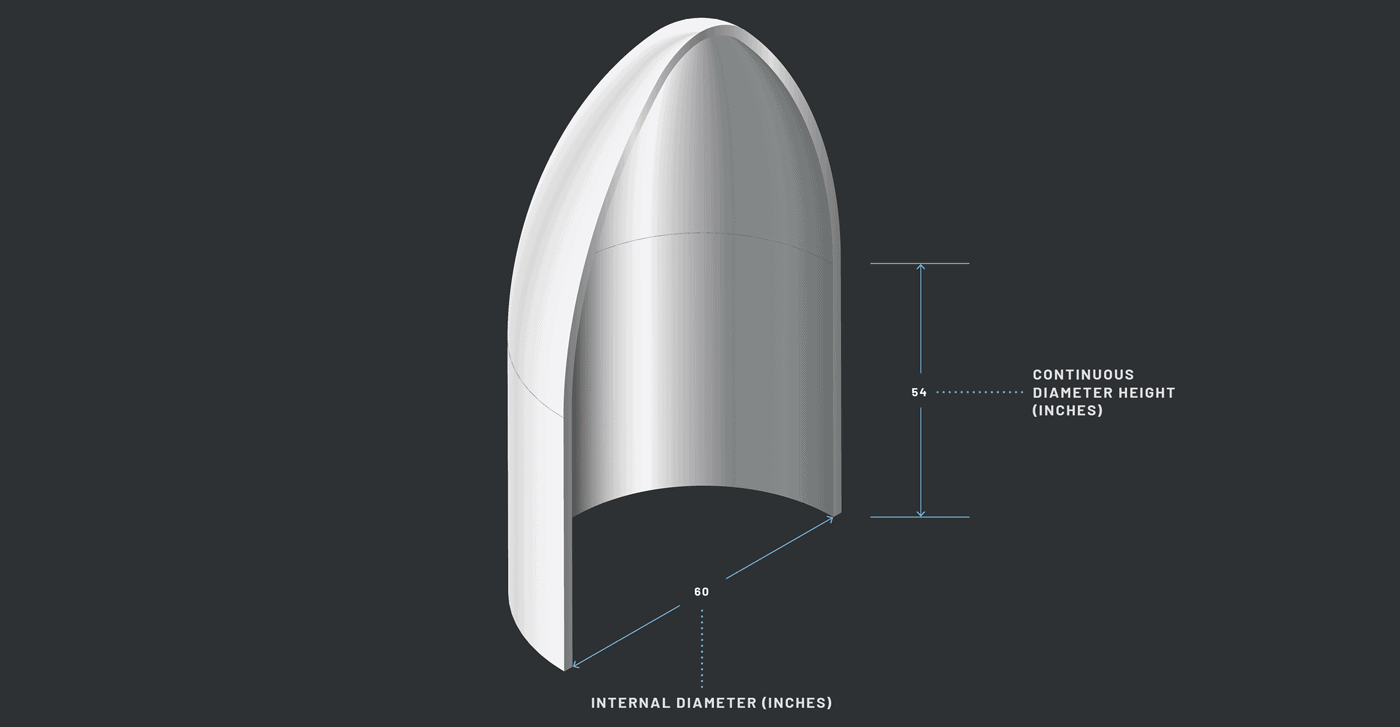

PAYLOAD FAIRING

Rocket 4’s fairing is designed to support a broad range of missions – from individual ESPA Grande spacecraft deployments to dual ESPA spacecraft deployments and multi-cubesat rideshare missions.

A flight-proven thermal protection system shields spacecraft on their way to orbit prior to fairing separation, which takes place during Rocket 4’s upper stage burn.

HEIGHT
133 in / 3.4 m

DIAMETER
67.5 in / 1.7 m

BUILDING A GLOBAL SPACEPORT NETWORK

Astra’s launch services are currently available from two U.S. spaceports to a broad range of orbital inclinations.

We plan to provide more access to space from more places on Earth – with additional spaceports coming online in 2024 & beyond.

Map

Map Marker 1

KODIAK, AK
59°-110°

Map Marker 2

CAPE CANAVERAL, FL
29°-59°

Map Marker 1

SAXAVORD, UK
75°-96°
(Planned)

CURRENT SPACEPORTS

PLANNED FUTURE SPACEPORTS
