Launch Window: November 18, 2021 to November 19, 2021

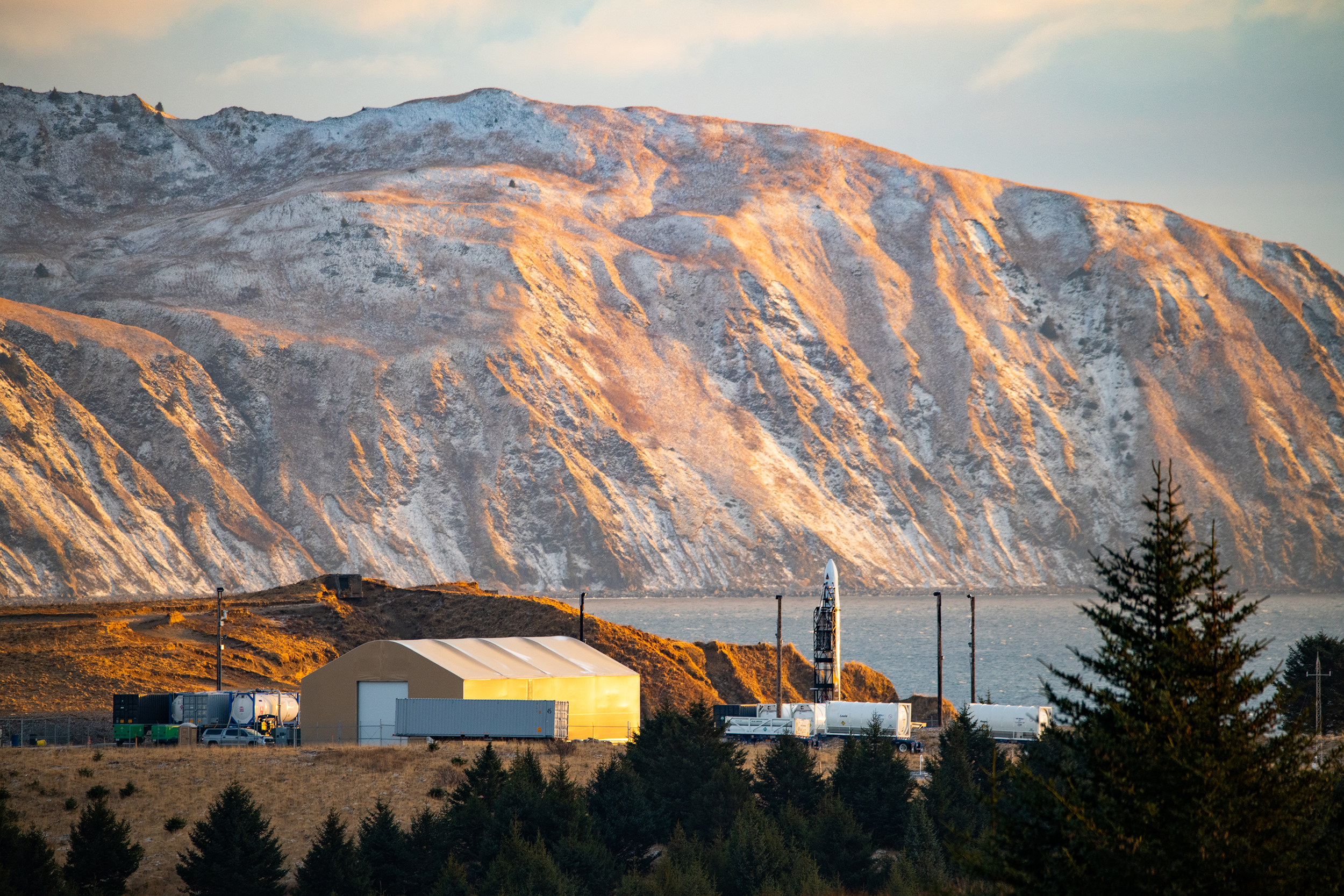

Launch site: Pad LP-3B, Pacific Spaceport Complex-Alaska; Kodiak, Alaska
Launch Vehicle: Rocket 3.3
Customer: United States Space Force
Target Orbital Inclination: 86 degrees
Target Altitude: 500 kilometers
Payload: This mission includes a non-deployable Space Force payload.Watch Launch Livestream
MISSION OVERVIEW AND OBJECTIVE
Space Force contracted this launch through the Defense Innovation Unit’s Other Transaction Agreement with Astra. Space Force will be launching a test payload for the Space Test Program. You can read more at astra.com/newsroom.
(ALL TIMES ARE APPROXIMATE)
|+6s||Begin Pitch Over|
|+2min 50s||Main Engine Cutoff (MECO)|
|+2min 55s||Fairing separation|
|+3min 00s||Stage separation|
|+3min 05s||Upper stage ignition|
|+8min 30s||Second Engine Cutoff (SECO)|
|+8min 40s||Payload Deployment Signal|
Astra has developed one of the world’s most responsive and affordable orbital launch systems. Rocket 3.3 is an expendable, vertically-launched two stage LOX/kerosene rocket, designed to fit inside a standard shipping container and built to dramatically lower the cost of access to space. Eschewing labor-intensive processes such as carbon composite layups, Astra has focused on proven and cost-efficient metallic structures.
Rocket 3.3 consists of a first stage powered by five electric-pump-fed engines and an upper stage propelled by a single pressure-fed Aether engine.
|First Stage||Upper Stage|
|Thrust per Engine||6,500 lbf SL||740 lbf vacuum|
|Total Thrust||32,500 lbf SL||740 lbf vacuum|
|Propellant||LOX / Kerosene||LOX / Kerosene|
|Overall Length||43 feet|
